Configure Deployments Using WorkFlows

Overview

This is a workflow that simplifies the creation of ICM configuration deployments. It takes the inputs and create new deployment. For the creation of new deployment, we used the "create-deployments" ICM endpoint and the following inputs:

  • IntentType
  • TemplateName
  • TargetData
  • NEID
  • TargetIdentifierValue

Prerequisites

For this workflow to run successfully, an intent type must be created or imported, and the required templates must already exist; otherwise, the workflow will either terminate quickly or return an error indicating that the intent type or template is missing.

This tutorial requires a NSP managed network with at least one SROS device. In order to exercise all examples, a minimum of 3 SROS devices is recommended. Devices can be either classic managed, via NFM-P, or model driven.

Disclaimer

This tutorial is meant as a proof of concept and as an example method for configuring devices. It is not designed to be implemented, and must not be used as is, in a production network. It is intended to guide development of an OSS.

This tutorial has only been tested with SROS-based network elements in a lab environment and may not be suitable for performance or scalability in a production network.

This tutorial has been tested with and is supported in NSP 25.8.

WorkFlow Functions

The workflow has the following functions:

  • Find intent type
  • Checking template existing or not
  • Create Deployment
  • Update Deployment
  • Replace Deployment
  • Retry Deployment
  • Delete Deployment

Configure Deployment

For this workflow to run successfully, an intent type must be created or imported, and the required templates must already exist; otherwise, the workflow will either terminate quickly or return an error indicating that the intent type or template is missing.

While the workflow checks for the ICM template existence, no templates are being created as part of this workflow. It will create new intent deployment once the intent and template are existing.

Intent Update

The workflow will initially check whether a deployment already exists. If the intent deployment already exists there are 2 possible ways on how to proceed:

a) If the intent deployment exists and is associated to the same ICM template the workflow uses the ICM "update-deployments" API endpoint to only update the intents target-data.

b) If the intent deployment exists but is associated to a different ICM template the workflow uses the ICM "replace-deployments" API endpoint to recreate the ICM intent using the ICM template of this workflows execution input.

Intent Deletion

There is a boolean input variable called "delete" which can be used to delete ICM intents as well. If set to "true", this workflow will delete the ICM intent that is associated to the template-name, target and target-identifier-value of this workflow executions input.

Other Notes

This workflow includes some error handling that turned out to be useful during ICM Intent deployments. There are:

  • fetching ICM Intent Deployments state before finishing the workflow
  • using the ICM Intent Deployments state to identify whether it is worth to retry the deployment
  • waiting for ICM Intent Deployments to finish "aligning" state
  • retry ICM Intent updates in case of API error response

Procedure & Verification

  • Go to NSP workflows
  • Import NSP Inventory workflows. Click the Import on the top right, choose "File System".  (In this example, we are using File System).

import

  • The following link provides the access to the workflow and postman collection for APIs:

icmDeploymentWorkFlow

ICM Deployment Postman Collection

icmWorkflow

  • Execute the workflow, it would ask for input. It can be either JSON format or YAML format. Here is the sample of JSON format:

{
  "intentType": "qos-sap-egress_msros_24-10-1_24-4",
  "intentTypeVersion": 1,
  "templateName": "sap-egress-md",
  "templateDescription": "Demo_sap_egress_md",
  "neId": "10.10.10.1",
  "targetIdentifierValue": "demoSapEgressMd",
  "targetData": "\"{\\\"sap-egress\\\":{\\\"description\\\":\\\"demoSapEgressMd\\\",\\\"policy-id\\\":678,\\\"queue\\\":[{\\\"queue-id\\\":1,\\\"rate\\\":{\\\"pir\\\":1000000}}],\\\"ip-criteria\\\":{\\\"entry\\\":[{\\\"entry-id\\\":10,\\\"match\\\":{\\\"dscp\\\":\\\"be\\\"},\\\"action\\\":{\\\"fc\\\":\\\"be\\\"}}]}}}\"",
  "target": "/nsp-equipment:network/network-element[ne-id='10.10.10.1']",
  "delete": false,
  "deleteOption": "network-and-nsp"
}

Here is the sample of YAML format:

intentType: qos-sap-egress_msros_24-10-1_24-4
intentTypeVersion: 1
templateName: sap-egress-md
templateDescription: Demo_sap_egress_md
neId: 10.10.10.1
targetIdentifierValue: demoSapEgressMd
targetData: >-
  "{\"sap-egress\":{\"description\":\"demoSapEgressMd\",\"policy-id\":678,\"queue\":[{\"queue-id\":1,\"rate\":{\"pir\":1000000}}],\"ip-criteria\":{\"entry\":[{\"entry-id\":10,\"match\":{\"dscp\":\"be\"},\"action\":{\"fc\":\"be\"}}]}}}"
target: /nsp-equipment:network/network-element[ne-id='10.10.10.1']
delete: false
deleteOption: network-and-nsp

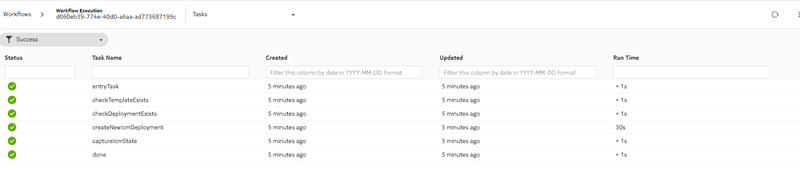

  • Go to the NSP GUI, Workflows -> WorkFlow Executions, the icmDeployment work flow should be running and show its status. Here is a successful run flow:
  • entryTask -> checkTemplateExists -> checkDeploymentExists -> createNewIcmDeployment -> catpureIcmState -> done

egressSuccssfulRun

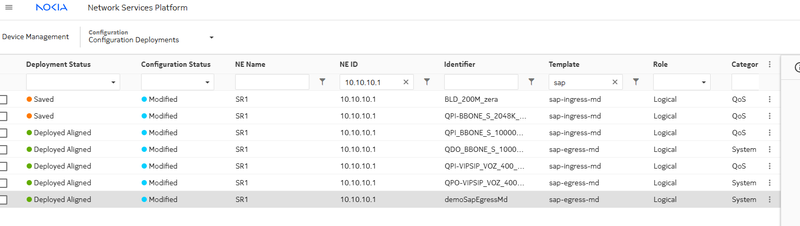

  • Verify the result either from NSP GUI or using API postman collection. From NSP GUI, go to Device Management -> Configuration Deployments , list the deployment on the specific target Ne, you should see:

demoSapEgressMd
  • You can use Find API to search for it. The output would have the following information:
  • "deployment-status": "deployed-aligned",
  • "deployment-status-message": "Alignment Successful"
POST https://{{server}}/restconf/operations/nsp-inventory:find
{
    "nsp-inventory:input" : {
            "xpath-filter": "/nsp-icm:icm/deployments/deployment[ne-id = '10.10.10.1' and template-name='sap-egress-md' and target-identifier-value='demoSapEgressMd']",
            "depth" : "2"

        }
}

Output:
{
    "nsp-inventory:output": {
        "data": [
            {
                "@": {
                    "nsp-model:schema-nodeid": "/nsp-icm:icm/deployments/deployment",
                    "nsp-model:identifier": "/nsp-icm:icm/deployments/deployment[template-name='sap-egress-md'][target='/nsp-equipment:network/network-element[ne-id='10.10.10.1']'][target-identifier-value='demoSapEgressMd']",
                    "nsp-model:creation-time": "2025-09-30T19:29:25.942Z",
                    "nsp-model:last-modified-time": "2025-09-30T19:29:26.428Z"
                },
                "template-name": "sap-egress-md",
                "target-identifier-value": "demoSapEgressMd",
                "merge": true,
                "deployment-action": "deploy",
                "ne-id": "10.10.10.1",
                "ne-name": "SR1",
                "status": "intent-aligned",
                "message": "Alignment Successful",
                "detailed-message": "Alignment Successful",
                "warning": null,
                "target": "/nsp-equipment:network/network-element[ne-id='10.10.10.1']",
                "target-data": "{\"sap-egress\":{\"description\":\"demoSapEgressMd\",\"policy-id\":666,\"queue\":[{\"queue-id\":1,\"rate\":{\"pir\":1000000}}],\"ip-criteria\":{\"entry\":[{\"entry-id\":10,\"match\":{\"dscp\":\"be\"},\"action\":{\"fc\":\"be\"}}]}}}",
                "deployed-target-data": "{\"qos-sap-egress_msros_24-10-1_24-4:qos-sap-egress_msros_24-10-1_24-4\" : {\"sap-egress\":{\"description\":\"demoSapEgressMd\",\"policy-id\":666,\"queue\":[{\"queue-id\":1,\"rate\":{\"pir\":1000000}}],\"ip-criteria\":{\"entry\":[{\"entry-id\":10,\"match\":{\"dscp\":\"be\"},\"action\":{\"fc\":\"be\"}}]}}}}",
                "deployment-status": "deployed-aligned",
                "deployment-status-message": "Alignment Successful",
...
...

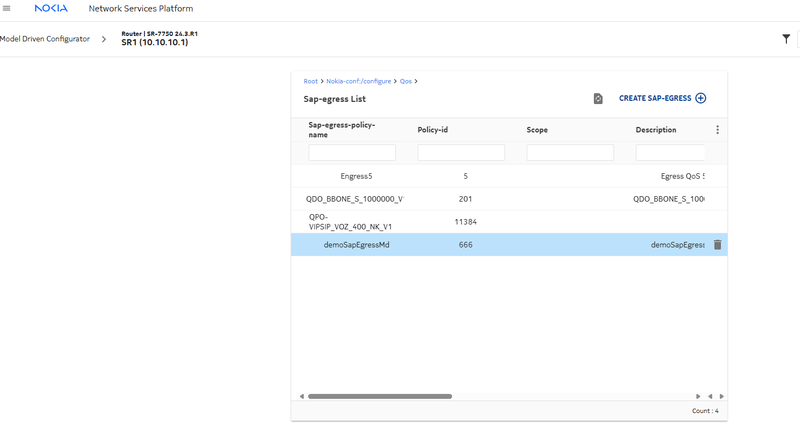

When the status is deployed-aligned, its target data would be pushed down to the NE. To verify in NSP GUI, go to Model Driven Configurator, go to Root -> Nokia:Conf/Configure-> Qos -> Sap e-gress List , you should see the information:

MDCGUI

You can also use Get API to verify. Sample is listed in the postman collection as well.

GET https://{{server}}/restconf/data/network-device-mgr:network-devices/network-device=10.10.10.1/root/nokia-conf:configure/qos/sap-egress=demoSapEgressMd

Output:
{
    "nokia-conf:sap-egress": [
        {
            "ip-criteria": {
                "entry": [
                    {
                        "entry-id": 10,
                        "match": {
                            "dscp": "be"
                        },
                        "action": {
                            "fc": "be"
                        }
                    }
                ]
            },
            "sap-egress-policy-name": "demoSapEgressMd",
            "description": "demoSapEgressMd",
            "policy-id": 666,
            "queue": [
                {
                    "queue-id": 1,
                    "rate": {
                        "pir": "1000000"
                    }
                }
            ]
        }
    ]
}

In the case of deployment failed scenario, the workflow would return icmError message indicate deployment failed. The deployment target information would only remain in NSP, wont be pushed down to the NE.

As mentioned above, this work flow can also hand update / replace deployment when the condition is met.

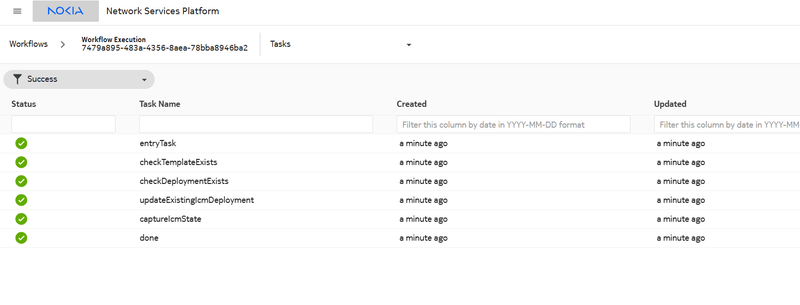

For example, here is the output of an updating existing deployment. The workflow finds the template and deployment both existing, it would update the existing deployment with the current target data.

updateExistingDeployment

This workflow can also delete an existing deployment. When the input 'delete' is set to true, the deleteOption is set to 'network-and-nsp', the deployment would be removed from both NSP and the NE. There are 3 deleteOptions:

  • network-and-nsp: remove the deployment config from NSP and NE
  • network: remove the deployment config from NSP without reverting any changes in NE
  • nsp: remove the deployment config from network and changes the deployment to Saved status

Here is an sample of the input:

intentType: qos-sap-egress_msros_24-10-1_24-4
intentTypeVersion: 1
templateName: sap-egress-md
templateDescription: demo testing sap
neId: 10.10.10.1
targetIdentifierValue: demo
targetData: >-
  "{\"sap-egress\":{\"description\":\"demo\",\"policy-id\":689,\"queue\":[{\"queue-id\":1,\"rate\":{\"pir\":1000000}}],\"ip-criteria\":{\"entry\":[{\"entry-id\":10,\"match\":{\"dscp\":\"be\"},\"action\":{\"fc\":\"be\"}}]}}}"
target: /nsp-equipment:network/network-element[ne-id='10.10.10.1']
delete: true
deleteOption: nsp

The workflow would go through the checking process: checkDeploymentExists -> deleteExistingIcmDeployment->done

Here is the output of the workflow looks like:

result:
  url: https://restconf-gateway/restconf/operations/nsp-icm:delete-deployments
  content:
    nsp-icm:output:
      status-code: 200
      message: Delete deployments started.
  resultFilter: null
  elapsed: 0.019424
  status: 200
icmStatus: >-
  ICM Deployment for Target
  /nsp-equipment:network/network-element[ne-id='10.10.10.1'] and configuration
  template "sap-egress-md" was successful following Delete Deployment procedure

The primary purpose of this workflow is to demonstrate how to create an ICM deployment based on intent and to fully automate the process. The workflow can do create/update/replace/delete an intent deployment.

This workflow can function independently as a standalone workflow or be leveraged as a sub-workflow within others. The targetData, provided as an input, can be generated by a parent workflow.
